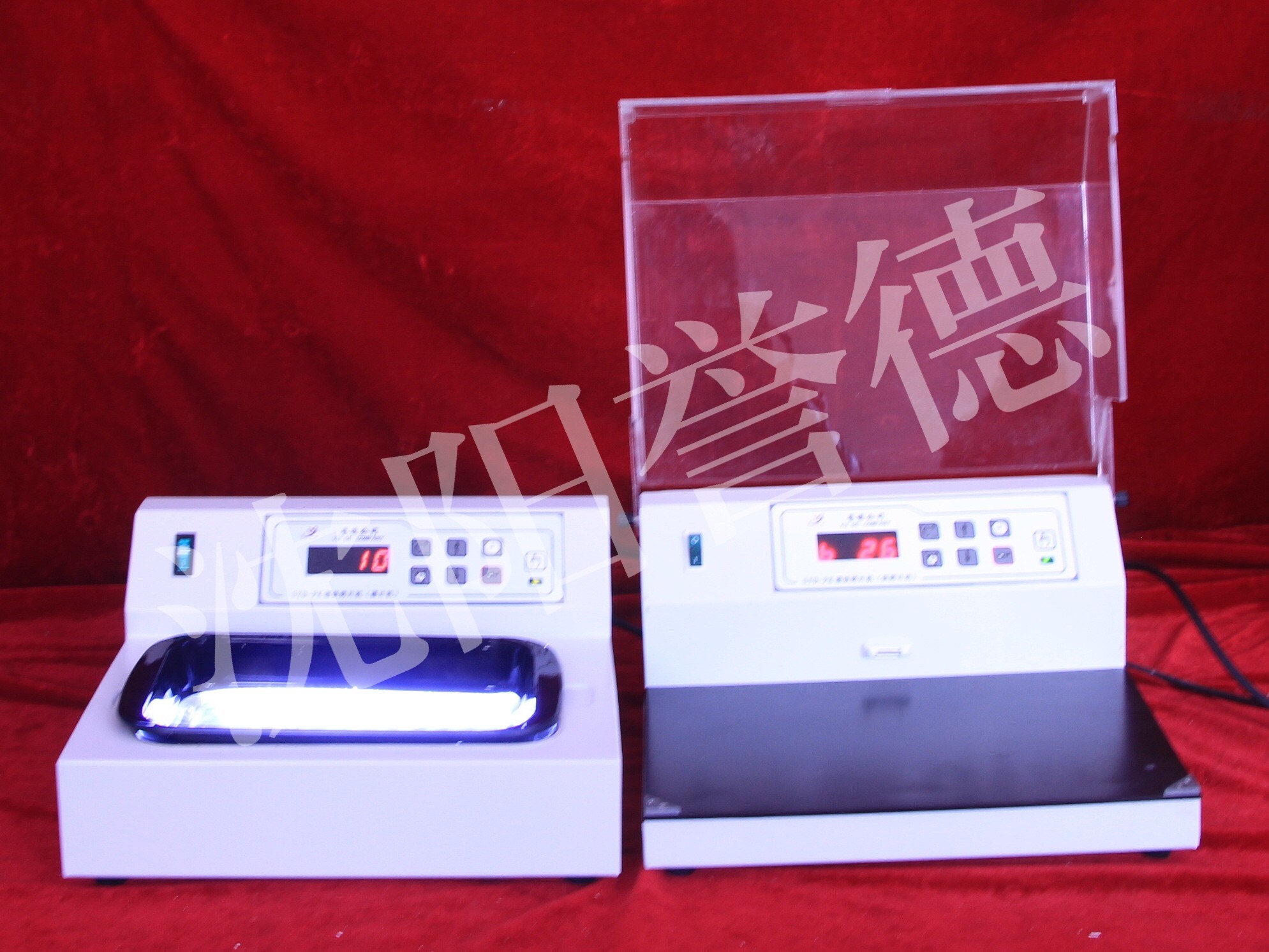

Slide Dryer SYD-PK, Pathology Instrument, Shenyang YUDE

Function and Characteristics:

Practical and convenient: split type, the flattening machine and baking machine can move to left or right at will.

Computer automatically controls the temperature. Switch on or off in timing. When the temperature rises to the setting value, buzzer sounds to automatically alarm.

Dual temperature protection: computer controls the temperature and relay monitors the temperature, which makes this machine work much better.

Heating method: Casted hot plate replaces the traditional resistance wire in heating, no fire and it is durable, high efficiency, safe and reliable. It also save sources.

Two ways of working: 1.placed the slide horizontally and directly baked it on heating table; 2.there is a Plexiglas cover on the hot plate, the temperature in the cover can be set from room temperature to 75℃ at will. When the temperature rises to the setting value, buzzer sounds to automatically alarm.

Timing function: this machine has computer clock, it can set the time of section baking except indicating time. When the section baking is finished, the buzzer will sound to alarm automatically.

Technical Parameters

Temperature Setting: Room Temperature to 75℃ ± 5℃

Voltage Supply: AC 220V ± 10V Rated Power: 260VA

Weight: 6.5kg Dimension: 320mm × 280mm × 150mm
