Pathology Cryostat Microtome SYD-K2040, Cryostat Microtome,
Shenyang YUDE
Function and Characteristics:
Control System: Computer-controlled automatic temperature, there are three
temperature displayed on the LCD at the same time. The dynamic
display can show the working conditions of all hardwares, include
compressor A, compressor B, lighting, UV, defrost and going forward
and drawing back of the motor, and freezing of the table and the
knife. The machine has Counting Down display when the compressor is
starting to work.
Four freezing points: Dual-compressors control system, there are four freezing points:
freezing head, freezing knife, freezing table and freezing box. The
freezing head can set different sectioning temperature according to
different tissue.
Temperature Setting Range
| Freezing Head | -5℃ ~ -50℃ |
| Freezing Knife | -5℃ ~ -30℃ |
| Freezing Table | -20℃ ~ -50℃ |
| Freezing Box | -5℃ ~ -18℃ |
Freezing speed: there is no need to precool, the machine can get into freezing
condition after starting up 10min. It can be switched off after
finishing work to save the energy. It can also switch on day and
night.
Health protection: There is no need to set the temperature very low, the section can
be done with high quality and avoid stimulating the human body.
System protection: The rapid freezing system can be switched off manually anytime,
and after working 8 hours, the rapid freezing system will switch
off automatically.
Defrosting system: There are automatic and manual defrosting functions. It can set 1.
Defrosting time interval 2.Defrosting time 3. Manual defrosting.
The user can set the time interval according to local temperature.
The defrosting function can be switched off anytime; the machine
will get into freezing condition after switching off the defrosting
function.

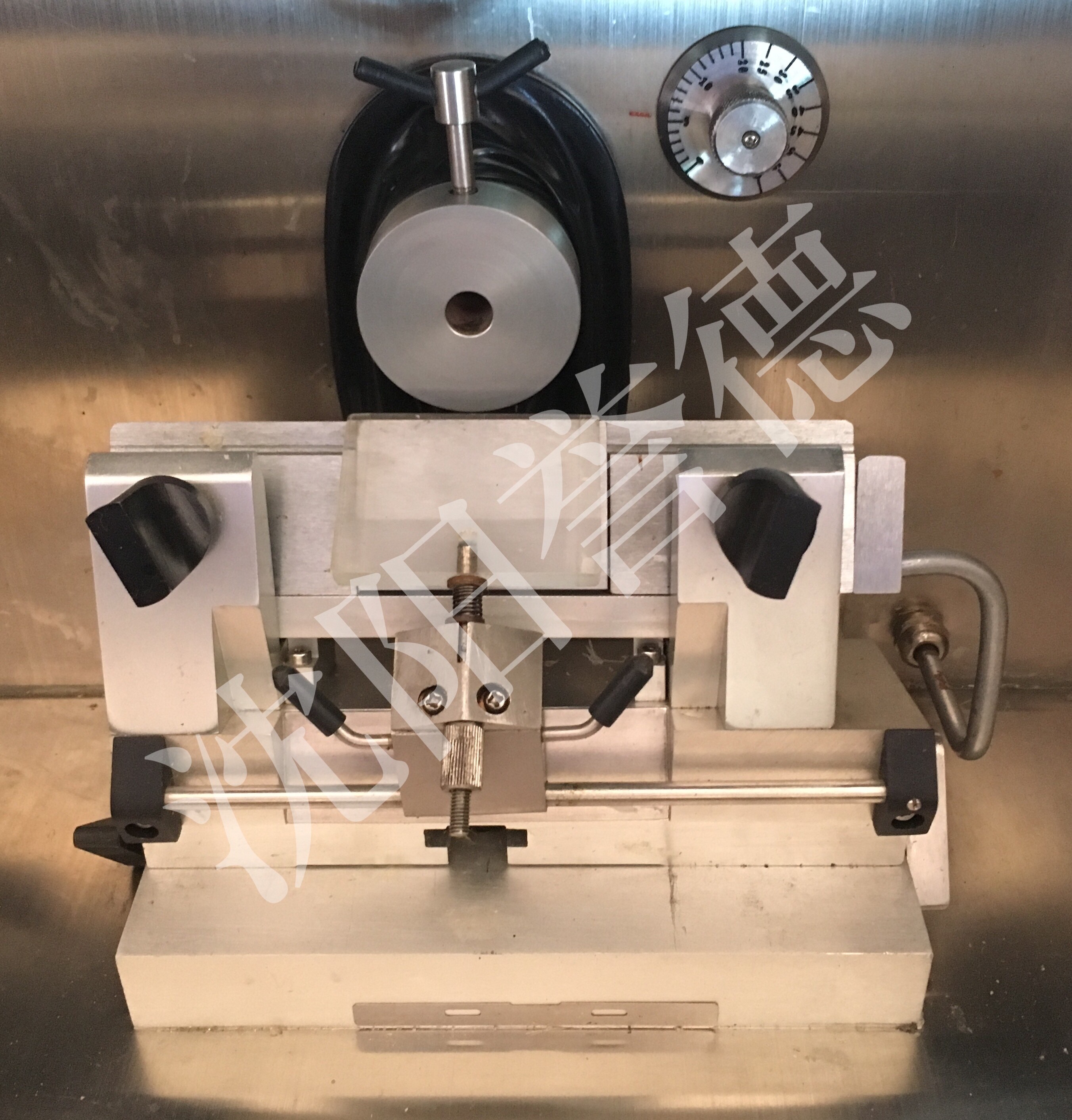

Mechanism: Excellent mechanical structure, the stability of the machine lie
on the vertical cross rolling bearing, the mechanism is closed type
and free from maintenance. Excellent mechanical performance:
section cutting is exact, flat and stable; there is a fine
anti-curling function.
The machine has UV disinfection function, the freezing box is
provided with down comer so that clean is convenient.
The big freezing table is suitable for all hospitals.
The steel knife and the disposable blade are interchangeable.
Section repairing will be done outside the box in two ways: thin or
thick.
The knife can go forward and draw back and move in fast or slow.
Tissue endothermic device: It can make tissue frozen rapidly with
freezing table.
Techincal Parameters
- Range of section thickness: 1μm —60μm step by 1μm from 1μm to 10μm
step by 2μm from 10μm to 20μm step by 5μm from 20μm to 60μm
- Minimum division value of section: 1μm
- Distance of up-and-down movement of head: 59mm
- Distance of fore-and-aft movement of head: 25mm
- Range of temperature setting: -5℃—-60℃
- Working time of rapid freezing system: switch off automatically
after working 8 hours
- Maximum sample: 50×70mm
- Range of angle adjustment of section knife: 0°— 10°
- Voltage: 220V
- Power: 750W
- Weight: 120kg
- Dimension: 680mm × 660mm ×1080mm
