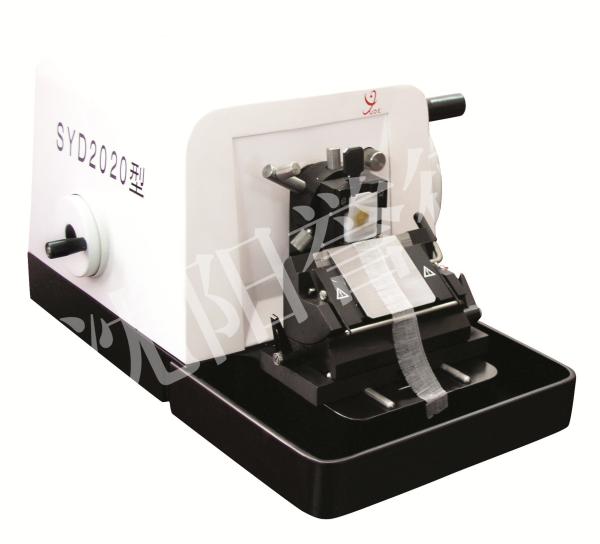

SYD-S2020 manual rotary microtome 60mm Vertical Specimen Stroke 430mm × 480mm ×270mm

Function and Characteristics:

The machine uses the top-grade precision parts.

The principle machine has a tight structure.Fine feed mechanism is enduring lubrication and is free from maintenance.

Imported double-guide track rolling-needle bearing determines the stability of section, which can achieve the ideal effect and guarantee of good quality, good linking of the section.

The hand wheel brake can make locking at an arbitrary position at any angle of 360 degree. And also has the dual knife protection device, it is convenient, safe and practical for operation.

The angle of the section of tissue can be adjusted at any will.

The standard sample holder of embedding box can be exchanged with the ordinary sample holder that holds the wax block.

The blade handle can be exchanged with the standard steel knife at your will.

Knife holder are human-machine integration designed, it can realize horizontal and vertical movement, it is convenient to take out the section.

The angle of slope of knife holder can be adjusted at will, which makes it have an ideal effect of section.

Big waste collection box is clean, convenient ,beautiful and dignified.

Technical Parameters:

1. The range of section thickness: 1-60μm

2. Minimum Division Value of section: 1μm

3. Range Adjustable Angle of the side of tissue section: 0～8°

4. Range Angle of Tissue Section: 0～10°

5. Maximum Sample Size: 60mm×50mm

6. Horizontal dislocation of Sample: 28mm

7. Vertical displacement of Sample: 60mm

8. Overall Dimension(L×W×H): 430mm×480mm×270mm

Shenyang Yude Electronic Instrument Co., Ltd was established in 1993, it is a comprehensive enterprise which integrates designing, manufacturing, development and marketing together.

Our products are specialized in medical pathological equipment. We had got a great achievement in the field of pathology. We supply our customers with advanced technology at competitive prices.

Our leading products are Cryostat, Rotary Paraffin Microtome, Embedding Center, Tissue Processor, Water Bath and Slide Drier Machine, Pathological Tissue Selected Table, etc.

Our company has got the CE and ISO9001 Certificate. We sell our products worldwide and our customers have wide-spread in Europe, South America, Asia, Middle East.
